Communication protocol:
Rs485, CAN, LAN

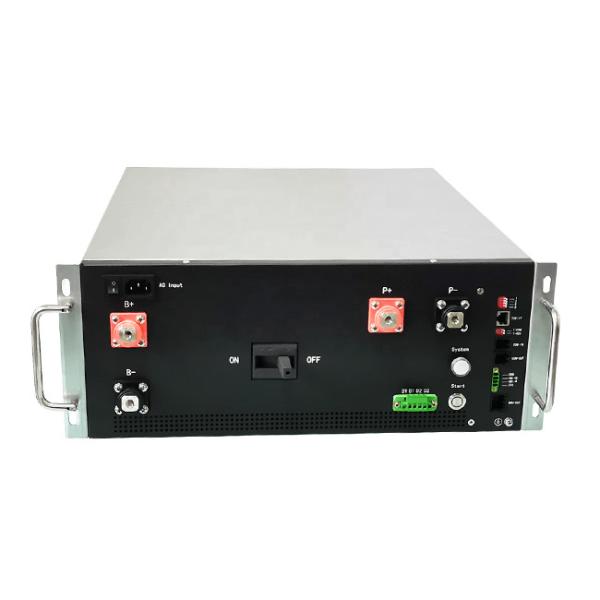

* 4U standard 19inch case * Efficient, stable and reliable * size:W482*H180*D500mm
Specification
| Product Name | BMS |
| Model no. | RBMS07S2-3-160A768V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A |
| Voltage Range | 384V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plug in) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤25W(Three wire systems); ≤15W(Two wire systems) |
| Size(W*H*D)mm | 4U (482*180*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 23kg |
Product Feature
1. Rich communication interface --- multiple RS485, CAN, Ethernet, dry contact input and
output interfaces, support for most of the market with PCS, monitoring server communication.
2. Flexible communication interface protocol --- The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.
3. Capacity is large --- Built-in large-capacity memory chips can store a large number
of key operational data, but also can install an SD card for offline access.
4. PCS has a protocol control function, the choice of circuit breaker version .
5. PCS without protocol control function, the choice of contactor + breaker version.
6. Automatic circulation control and automatic parallel machine off-line control, can be easily parallel battery. (Model suffix selection D).
